Product Details

Use
The surface control equipment necessary for thermal recovery wellhead devices to inject steam downhole is used to produce heavy oil.

Structural features
The high temperature and high pressure thermal recovery wellhead is mainly composed of bottom flange, tubing head spool, upper flange, small spool, valve, restrictor, globe valve, septum tube short section, connecting flange, etc. The valve □ is connected with each component by a flange clamp, which improves the connection strength between the fasteners, increases the reliability of the steel ring seal, and has high temperature resistance and pressure resistance of the wellhead.

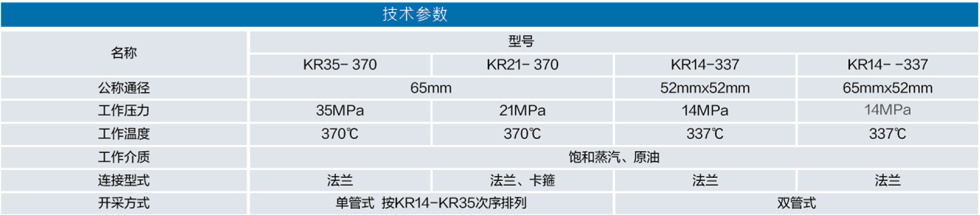

Name KR35-370 KR21-370 KR14-337 KR14-337
Nominal Bore 65mm   52mm×52mm 65mm×52mm
Working Pressure 35MPa 21MPa 14MPa 14MPa
Working Temperature 370℃ 370℃ 337℃ 337℃
Working Medium Saturated Steam, Crude Oil
Connection Type Flange Flange, Clamp Flange Flange
Production Method Single Tubing; Arranged in KR14-KR35 order   Dual Tubing
